1. Composition and Architectural Residences of Fused Quartz
1.1 Amorphous Network and Thermal Security

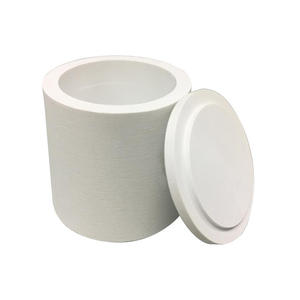

(Quartz Crucibles)
Quartz crucibles are high-temperature containers produced from integrated silica, a synthetic form of silicon dioxide (SiO ₂) originated from the melting of all-natural quartz crystals at temperatures going beyond 1700 ° C.
Unlike crystalline quartz, fused silica has an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which conveys remarkable thermal shock resistance and dimensional security under quick temperature modifications.
This disordered atomic structure stops cleavage along crystallographic aircrafts, making integrated silica much less prone to fracturing throughout thermal biking compared to polycrystalline porcelains.
The product exhibits a low coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), among the lowest among design materials, enabling it to withstand severe thermal gradients without fracturing– an essential building in semiconductor and solar cell production.
Fused silica additionally maintains outstanding chemical inertness versus many acids, liquified metals, and slags, although it can be slowly etched by hydrofluoric acid and warm phosphoric acid.
Its high conditioning point (~ 1600– 1730 ° C, depending upon pureness and OH web content) allows sustained procedure at elevated temperatures required for crystal growth and metal refining procedures.
1.2 Pureness Grading and Micronutrient Control
The efficiency of quartz crucibles is highly dependent on chemical purity, specifically the concentration of metallic impurities such as iron, salt, potassium, aluminum, and titanium.
Also trace quantities (components per million level) of these pollutants can move right into liquified silicon during crystal development, deteriorating the electrical properties of the resulting semiconductor product.
High-purity grades made use of in electronic devices producing generally include over 99.95% SiO ₂, with alkali steel oxides restricted to less than 10 ppm and change metals below 1 ppm.
Pollutants originate from raw quartz feedstock or processing devices and are decreased via careful option of mineral sources and purification methods like acid leaching and flotation protection.
Furthermore, the hydroxyl (OH) content in fused silica affects its thermomechanical habits; high-OH types supply better UV transmission yet reduced thermal stability, while low-OH versions are favored for high-temperature applications as a result of minimized bubble development.

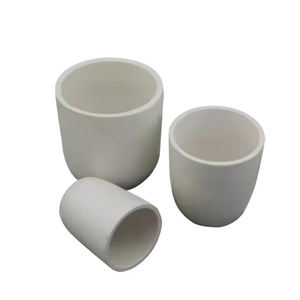

( Quartz Crucibles)
2. Production Refine and Microstructural Layout
2.1 Electrofusion and Developing Strategies
Quartz crucibles are mainly produced using electrofusion, a process in which high-purity quartz powder is fed into a rotating graphite mold within an electric arc furnace.
An electric arc created between carbon electrodes thaws the quartz bits, which solidify layer by layer to create a smooth, thick crucible form.
This technique produces a fine-grained, uniform microstructure with marginal bubbles and striae, crucial for uniform warmth distribution and mechanical stability.
Alternative approaches such as plasma blend and flame combination are utilized for specialized applications needing ultra-low contamination or details wall density profiles.
After casting, the crucibles undertake regulated cooling (annealing) to relieve internal stresses and stop spontaneous fracturing during solution.
Surface ending up, including grinding and polishing, guarantees dimensional accuracy and decreases nucleation sites for undesirable formation during use.
2.2 Crystalline Layer Design and Opacity Control
A specifying attribute of modern-day quartz crucibles, specifically those made use of in directional solidification of multicrystalline silicon, is the engineered inner layer framework.
Throughout production, the inner surface is typically treated to advertise the development of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon first heating.
This cristobalite layer serves as a diffusion barrier, reducing straight interaction in between liquified silicon and the underlying fused silica, thus lessening oxygen and metal contamination.
Additionally, the presence of this crystalline stage enhances opacity, improving infrared radiation absorption and advertising even more consistent temperature distribution within the thaw.
Crucible developers thoroughly stabilize the thickness and connection of this layer to prevent spalling or cracking as a result of quantity adjustments throughout phase transitions.
3. Practical Performance in High-Temperature Applications
3.1 Function in Silicon Crystal Growth Processes
Quartz crucibles are crucial in the production of monocrystalline and multicrystalline silicon, functioning as the key container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped right into liquified silicon kept in a quartz crucible and gradually drew upwards while turning, allowing single-crystal ingots to develop.
Although the crucible does not straight get in touch with the expanding crystal, interactions in between liquified silicon and SiO ₂ walls cause oxygen dissolution into the thaw, which can impact service provider lifetime and mechanical stamina in completed wafers.
In DS processes for photovoltaic-grade silicon, large-scale quartz crucibles allow the controlled air conditioning of thousands of kgs of molten silicon into block-shaped ingots.
Here, layers such as silicon nitride (Si five N ₄) are put on the inner surface to stop bond and facilitate simple launch of the strengthened silicon block after cooling down.
3.2 Destruction Devices and Service Life Limitations
Despite their effectiveness, quartz crucibles deteriorate during duplicated high-temperature cycles because of numerous related systems.
Thick circulation or contortion happens at long term exposure above 1400 ° C, causing wall surface thinning and loss of geometric honesty.
Re-crystallization of fused silica right into cristobalite generates interior stresses due to volume development, possibly causing cracks or spallation that contaminate the thaw.
Chemical disintegration emerges from reduction reactions between liquified silicon and SiO ₂: SiO TWO + Si → 2SiO(g), producing volatile silicon monoxide that runs away and deteriorates the crucible wall.
Bubble formation, driven by trapped gases or OH groups, even more endangers architectural stamina and thermal conductivity.
These deterioration pathways restrict the number of reuse cycles and require specific procedure control to optimize crucible lifespan and item return.
4. Arising Innovations and Technical Adaptations
4.1 Coatings and Composite Modifications
To boost performance and durability, progressed quartz crucibles incorporate useful coatings and composite structures.
Silicon-based anti-sticking layers and doped silica layers improve release features and reduce oxygen outgassing during melting.
Some manufacturers integrate zirconia (ZrO TWO) fragments into the crucible wall to enhance mechanical strength and resistance to devitrification.
Study is continuous into completely clear or gradient-structured crucibles made to optimize radiant heat transfer in next-generation solar heater designs.
4.2 Sustainability and Recycling Difficulties
With enhancing need from the semiconductor and solar sectors, sustainable use of quartz crucibles has become a priority.
Used crucibles contaminated with silicon deposit are hard to reuse because of cross-contamination threats, bring about considerable waste generation.
Initiatives concentrate on establishing multiple-use crucible liners, improved cleaning methods, and closed-loop recycling systems to recoup high-purity silica for secondary applications.
As tool efficiencies require ever-higher product pureness, the role of quartz crucibles will certainly continue to advance through advancement in products scientific research and process engineering.
In summary, quartz crucibles stand for an essential user interface in between basic materials and high-performance electronic items.
Their unique mix of pureness, thermal durability, and architectural design makes it possible for the manufacture of silicon-based technologies that power modern-day computing and renewable resource systems.
