1. Chemical Structure and Molecular Mechanism
1.1 Synthesis and Molecular Architecture

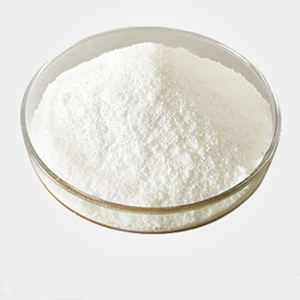

(Naphthalene Sulfonate Superplasticizer)
Naphthalene sulfonate formaldehyde condensate (NSF), commonly known as naphthalene sulfonate superplasticizer, is a synthetic water-reducing admixture extensively utilized in high-performance concrete to boost flowability without endangering structural integrity.
It is produced with a multi-step chemical process involving the sulfonation of naphthalene with concentrated sulfuric acid to form naphthalene sulfonic acid, followed by formaldehyde condensation under regulated temperature level and pH problems to produce a polymer with repeating fragrant devices connected by methylene bridges.
The resulting molecule includes a hydrophobic naphthalene foundation and numerous hydrophilic sulfonate (-SO FIVE ⁻) groups, creating a comb-like polyelectrolyte structure that makes it possible for strong interaction with concrete particles in liquid environments.
This amphiphilic style is central to its distributing function, permitting the polymer to adsorb onto the surface area of cement hydrates and give electrostatic repulsion between fragments.
The level of sulfonation and polymerization can be adjusted during synthesis to tailor the molecular weight and fee thickness, straight influencing dispersion efficiency and compatibility with various cement types.
1.2 Diffusion System in Cementitious Equipments
When included in fresh concrete, NSF features mostly via electrostatic repulsion, a system distinct from steric limitation employed by newer polycarboxylate-based superplasticizers.
Upon mixing, the hydrophobic naphthalene rings adsorb onto the favorably billed websites of tricalcium silicate (C TWO S) and other concrete phases, while the adversely billed sulfonate teams prolong right into the pore remedy, creating a solid adverse surface area possibility.
This produces an electrical dual layer around each concrete fragment, causing them to push back each other and neutralizing the natural tendency of fine bits to flocculate due to van der Waals forces.
Consequently, the entrapped water within flocs is released, enhancing the fluidity of the mix and allowing substantial decreases in water content– normally 15– 25%– while keeping workability.
This boosted diffusion results in a much more uniform microstructure, lowered porosity, and improved mechanical toughness growth with time.
However, the efficiency of NSF reduces with prolonged blending or high temperatures as a result of desorption and downturn loss, a constraint that affects its application in long-haul transportation or warm climates.

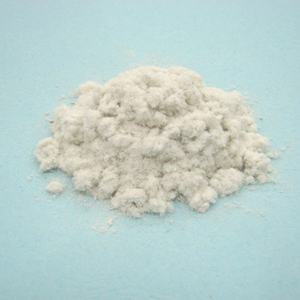

( Naphthalene Sulfonate Superplasticizer)
2. Performance Characteristics and Design Benefits
2.1 Workability and Circulation Improvement
One of one of the most instant benefits of naphthalene sulfonate superplasticizer is its ability to drastically enhance the slump of concrete, making it highly flowable and very easy to area, pump, and settle, specifically in densely strengthened frameworks.
This improved workability allows for the building of complicated architectural forms and reduces the need for mechanical resonance, minimizing labor costs and the risk of honeycombing or spaces.
NSF is particularly reliable in producing self-consolidating concrete (SCC) when made use of in mix with viscosity-modifying representatives and other admixtures, ensuring full mold and mildew loading without partition.
The level of fluidness gain relies on dosage, commonly ranging from 0.5% to 2.0% by weight of concrete, beyond which diminishing returns and even retardation might take place.
Unlike some natural plasticizers, NSF does not introduce too much air entrainment, maintaining the thickness and sturdiness of the final product.
2.2 Stamina and Sturdiness Improvements
By making it possible for reduced water-to-cement (w/c) ratios, NSF plays a critical role in enhancing both early and long-term compressive and flexural strength of concrete.
A minimized w/c proportion lowers capillary porosity, bring about a denser, less absorptive matrix that withstands the access of chlorides, sulfates, and moisture– essential consider stopping reinforcement deterioration and sulfate assault.
This better impermeability expands service life in hostile environments such as aquatic frameworks, bridges, and wastewater therapy facilities.
Furthermore, the uniform dispersion of concrete bits promotes even more complete hydration, accelerating strength gain and lowering shrinking cracking threats.
Researches have actually shown that concrete integrating NSF can attain 20– 40% greater compressive toughness at 28 days compared to control mixes, depending upon mix style and curing problems.
3. Compatibility and Application Considerations
3.1 Interaction with Concrete and Supplementary Materials
The efficiency of naphthalene sulfonate superplasticizer can differ considerably relying on the make-up of the cement, particularly the C ₃ A (tricalcium aluminate) content and alkali levels.
Concretes with high C FIVE An often tend to adsorb more NSF as a result of more powerful electrostatic communications, potentially calling for greater does to accomplish the desired fluidity.
In a similar way, the existence of additional cementitious products (SCMs) such as fly ash, slag, or silica fume affects adsorption kinetics and rheological actions; as an example, fly ash can complete for adsorption sites, changing the reliable dosage.
Mixing NSF with other admixtures like retarders, accelerators, or air-entraining agents calls for cautious compatibility testing to prevent negative communications such as rapid slump loss or flash set.
Batching series– whether NSF is included previously, during, or after blending– additionally affects diffusion performance and should be standardized in massive operations.
3.2 Environmental and Handling Factors
NSF is offered in fluid and powder kinds, with liquid formulas providing much easier dosing and faster dissolution in mixing water.
While generally secure under normal storage space problems, long term direct exposure to freezing temperature levels can cause precipitation, and high heat might weaken the polymer chains in time.
From an ecological viewpoint, NSF is thought about reduced toxicity and non-corrosive, though appropriate handling practices ought to be complied with to stay clear of breathing of powder or skin irritability.
Its manufacturing involves petrochemical derivatives and formaldehyde, raising sustainability issues that have actually driven study right into bio-based choices and greener synthesis courses.
4. Industrial Applications and Future Outlook
4.1 Use in Precast, Ready-Mix, and High-Strength Concrete
Naphthalene sulfonate superplasticizer is extensively made use of in precast concrete production, where precise control over setting time, surface finish, and dimensional precision is crucial.
In ready-mixed concrete, it makes it possible for long-distance transportation without giving up workability upon arrival at building sites.
It is additionally a vital part in high-strength concrete (HSC) and ultra-high-performance concrete (UHPC), where very low w/c proportions are called for to attain compressive toughness going beyond 100 MPa.
Tunnel cellular linings, high-rise buildings, and prestressed concrete elements take advantage of the enhanced toughness and architectural efficiency given by NSF-modified mixes.
4.2 Patterns and Challenges in Admixture Modern Technology
In spite of the appearance of advanced polycarboxylate ether (PCE) superplasticizers with superior depression retention and reduced dosage requirements, NSF stays widely used because of its cost-effectiveness and tested performance.
Continuous study concentrates on crossbreed systems integrating NSF with PCEs or nanomaterials to optimize rheology and strength growth.
Efforts to enhance biodegradability, lower formaldehyde exhausts throughout production, and enhance compatibility with low-carbon cements show the sector’s change toward sustainable construction products.
To conclude, naphthalene sulfonate superplasticizer stands for a keystone modern technology in modern-day concrete engineering, bridging the void in between typical practices and progressed material efficiency.
Its ability to change concrete right into a highly practical yet long lasting composite remains to support worldwide framework development, also as next-generation admixtures progress.
