1. Product Characteristics and Structural Stability
1.1 Innate Attributes of Silicon Carbide

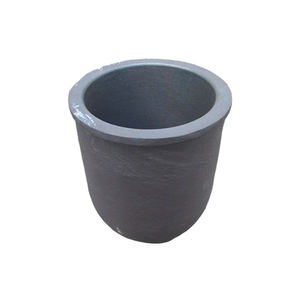

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic compound composed of silicon and carbon atoms prepared in a tetrahedral latticework framework, mostly existing in over 250 polytypic types, with 6H, 4H, and 3C being one of the most technologically pertinent.
Its solid directional bonding conveys phenomenal firmness (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m Ā· K )for pure solitary crystals), and superior chemical inertness, making it one of one of the most durable products for extreme environments.
The vast bandgap (2.9– 3.3 eV) makes certain excellent electric insulation at room temperature and high resistance to radiation damage, while its reduced thermal development coefficient (~ 4.0 Ć 10 ā»ā¶/ K) adds to superior thermal shock resistance.
These innate homes are maintained also at temperature levels exceeding 1600 Ā° C, enabling SiC to preserve structural integrity under long term exposure to thaw steels, slags, and reactive gases.
Unlike oxide porcelains such as alumina, SiC does not react conveniently with carbon or form low-melting eutectics in minimizing ambiences, a critical advantage in metallurgical and semiconductor processing.
When made right into crucibles– vessels developed to contain and heat products– SiC outmatches conventional products like quartz, graphite, and alumina in both life expectancy and procedure reliability.
1.2 Microstructure and Mechanical Stability
The efficiency of SiC crucibles is closely linked to their microstructure, which depends on the manufacturing technique and sintering ingredients made use of.
Refractory-grade crucibles are typically produced using response bonding, where porous carbon preforms are penetrated with molten silicon, forming Ī²-SiC through the response Si(l) + C(s) ā SiC(s).
This procedure generates a composite framework of key SiC with recurring complimentary silicon (5– 10%), which enhances thermal conductivity but might limit usage over 1414 Ā° C(the melting point of silicon).
Conversely, completely sintered SiC crucibles are made through solid-state or liquid-phase sintering making use of boron and carbon or alumina-yttria ingredients, achieving near-theoretical thickness and higher pureness.
These show premium creep resistance and oxidation stability yet are extra expensive and tough to produce in large sizes.

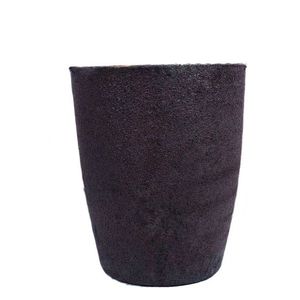

( Silicon Carbide Crucibles)
The fine-grained, interlocking microstructure of sintered SiC provides exceptional resistance to thermal exhaustion and mechanical erosion, crucial when handling molten silicon, germanium, or III-V compounds in crystal development processes.
Grain limit engineering, consisting of the control of additional stages and porosity, plays an important function in identifying long-lasting longevity under cyclic home heating and aggressive chemical atmospheres.
2. Thermal Efficiency and Environmental Resistance
2.1 Thermal Conductivity and Warm Circulation
One of the defining advantages of SiC crucibles is their high thermal conductivity, which allows quick and uniform heat transfer throughout high-temperature handling.
As opposed to low-conductivity materials like merged silica (1– 2 W/(m Ā· K)), SiC efficiently distributes thermal power throughout the crucible wall surface, minimizing local hot spots and thermal slopes.
This harmony is important in processes such as directional solidification of multicrystalline silicon for photovoltaics, where temperature homogeneity straight influences crystal top quality and issue density.
The combination of high conductivity and low thermal expansion causes an extremely high thermal shock parameter (R = k(1 ā Ī½)Ī±/ Ļ), making SiC crucibles immune to fracturing during fast home heating or cooling down cycles.
This allows for faster heater ramp rates, enhanced throughput, and reduced downtime due to crucible failure.
Moreover, the product’s capability to stand up to repeated thermal biking without substantial deterioration makes it excellent for batch processing in commercial heating systems operating above 1500 Ā° C.
2.2 Oxidation and Chemical Compatibility
At elevated temperatures in air, SiC undergoes easy oxidation, developing a safety layer of amorphous silica (SiO ā) on its surface: SiC + 3/2 O TWO ā SiO ā + CO.
This glazed layer densifies at heats, acting as a diffusion barrier that slows down additional oxidation and protects the underlying ceramic structure.
Nonetheless, in reducing ambiences or vacuum conditions– typical in semiconductor and metal refining– oxidation is suppressed, and SiC continues to be chemically secure against liquified silicon, light weight aluminum, and lots of slags.
It withstands dissolution and reaction with liquified silicon up to 1410 Ā° C, although long term direct exposure can lead to minor carbon pickup or user interface roughening.
Crucially, SiC does not present metal impurities right into delicate thaws, a vital need for electronic-grade silicon manufacturing where contamination by Fe, Cu, or Cr has to be maintained below ppb levels.
However, care should be taken when processing alkaline earth steels or highly reactive oxides, as some can rust SiC at severe temperature levels.
3. Production Processes and Quality Assurance
3.1 Fabrication Strategies and Dimensional Control
The production of SiC crucibles involves shaping, drying, and high-temperature sintering or seepage, with methods chosen based upon called for pureness, size, and application.
Usual developing strategies consist of isostatic pressing, extrusion, and slide spreading, each using various levels of dimensional accuracy and microstructural uniformity.
For big crucibles used in photovoltaic or pv ingot casting, isostatic pressing guarantees constant wall density and thickness, decreasing the threat of uneven thermal expansion and failing.
Reaction-bonded SiC (RBSC) crucibles are affordable and extensively used in factories and solar markets, though recurring silicon limitations optimal solution temperature level.
Sintered SiC (SSiC) versions, while extra costly, offer premium pureness, toughness, and resistance to chemical assault, making them suitable for high-value applications like GaAs or InP crystal growth.
Precision machining after sintering might be called for to attain limited tolerances, specifically for crucibles utilized in upright slope freeze (VGF) or Czochralski (CZ) systems.
Surface finishing is vital to reduce nucleation sites for issues and ensure smooth melt flow throughout spreading.
3.2 Quality Assurance and Performance Recognition
Rigorous quality assurance is important to ensure dependability and longevity of SiC crucibles under requiring operational conditions.
Non-destructive examination techniques such as ultrasonic screening and X-ray tomography are used to spot interior splits, gaps, or density variants.
Chemical analysis via XRF or ICP-MS verifies low degrees of metallic contaminations, while thermal conductivity and flexural toughness are determined to confirm product uniformity.
Crucibles are often based on substitute thermal cycling examinations before delivery to identify potential failing modes.
Set traceability and accreditation are standard in semiconductor and aerospace supply chains, where element failure can bring about costly manufacturing losses.
4. Applications and Technical Impact
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play a crucial function in the manufacturing of high-purity silicon for both microelectronics and solar cells.
In directional solidification furnaces for multicrystalline solar ingots, huge SiC crucibles serve as the primary container for molten silicon, sustaining temperatures above 1500 Ā° C for numerous cycles.
Their chemical inertness prevents contamination, while their thermal stability makes certain consistent solidification fronts, causing higher-quality wafers with less dislocations and grain limits.
Some manufacturers layer the internal surface with silicon nitride or silica to further minimize attachment and assist in ingot release after cooling.
In research-scale Czochralski development of compound semiconductors, smaller SiC crucibles are used to hold melts of GaAs, InSb, or CdTe, where minimal reactivity and dimensional stability are critical.
4.2 Metallurgy, Shop, and Emerging Technologies
Past semiconductors, SiC crucibles are important in metal refining, alloy preparation, and laboratory-scale melting procedures involving light weight aluminum, copper, and precious metals.
Their resistance to thermal shock and disintegration makes them ideal for induction and resistance furnaces in foundries, where they last longer than graphite and alumina choices by a number of cycles.
In additive production of reactive metals, SiC containers are made use of in vacuum induction melting to stop crucible failure and contamination.
Arising applications consist of molten salt activators and focused solar power systems, where SiC vessels may consist of high-temperature salts or liquid metals for thermal energy storage.
With ongoing breakthroughs in sintering technology and covering design, SiC crucibles are positioned to sustain next-generation materials processing, allowing cleaner, much more efficient, and scalable industrial thermal systems.
In recap, silicon carbide crucibles stand for a crucial making it possible for innovation in high-temperature product synthesis, combining outstanding thermal, mechanical, and chemical efficiency in a solitary crafted part.
Their prevalent fostering across semiconductor, solar, and metallurgical markets emphasizes their role as a foundation of modern industrial ceramics.
