1. Material Science and Structural Properties

1.1 Crystal Framework and Chemical Stability

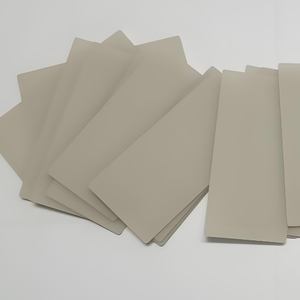

(Aluminum Nitride Ceramic Substrates)

Light weight aluminum nitride (AlN) is a large bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, composed of rotating layers of aluminum and nitrogen atoms bound via solid covalent communications.

This robust atomic arrangement grants AlN with outstanding thermal security, maintaining structural honesty up to 2200 ° C in inert ambiences and withstanding decomposition under extreme thermal cycling.

Unlike alumina (Al ₂ O SIX), AlN is chemically inert to molten steels and numerous reactive gases, making it appropriate for extreme environments such as semiconductor processing chambers and high-temperature furnaces.

Its high resistance to oxidation– forming only a thin safety Al two O two layer at surface upon direct exposure to air– guarantees lasting integrity without considerable destruction of bulk buildings.

Moreover, AlN shows outstanding electric insulation with a resistivity surpassing 10 ¹⁴ Ω · cm and a dielectric toughness over 30 kV/mm, important for high-voltage applications.

1.2 Thermal Conductivity and Electronic Features

The most specifying feature of aluminum nitride is its outstanding thermal conductivity, normally varying from 140 to 180 W/(m · K )for commercial-grade substrates– over five times higher than that of alumina (≈ 30 W/(m · K)).

This performance originates from the low atomic mass of nitrogen and aluminum, integrated with strong bonding and marginal point flaws, which enable effective phonon transportation with the latticework.

Nonetheless, oxygen pollutants are particularly destructive; even trace quantities (above 100 ppm) replacement for nitrogen sites, producing light weight aluminum jobs and spreading phonons, thereby substantially lowering thermal conductivity.

High-purity AlN powders manufactured by means of carbothermal decrease or direct nitridation are important to accomplish optimum warm dissipation.

In spite of being an electric insulator, AlN’s piezoelectric and pyroelectric buildings make it important in sensors and acoustic wave gadgets, while its broad bandgap (~ 6.2 eV) sustains operation in high-power and high-frequency electronic systems.

2. Manufacture Procedures and Production Obstacles

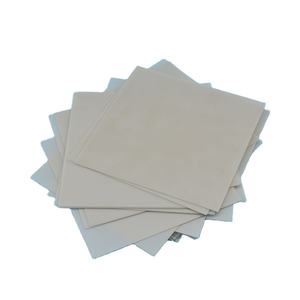

( Aluminum Nitride Ceramic Substrates)

2.1 Powder Synthesis and Sintering Techniques

Making high-performance AlN substratums starts with the synthesis of ultra-fine, high-purity powder, typically achieved via reactions such as Al Two O ₃ + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or straight nitridation of aluminum steel: 2Al + N TWO → 2AlN.

The resulting powder should be thoroughly milled and doped with sintering aids like Y TWO O SIX, CaO, or uncommon planet oxides to advertise densification at temperatures between 1700 ° C and 1900 ° C under nitrogen environment.

These ingredients form transient fluid phases that enhance grain boundary diffusion, allowing full densification (> 99% theoretical density) while decreasing oxygen contamination.

Post-sintering annealing in carbon-rich atmospheres can additionally lower oxygen material by removing intergranular oxides, thus recovering peak thermal conductivity.

Accomplishing uniform microstructure with controlled grain dimension is vital to stabilize mechanical stamina, thermal efficiency, and manufacturability.

2.2 Substrate Shaping and Metallization

Once sintered, AlN porcelains are precision-ground and splashed to fulfill tight dimensional resistances needed for electronic packaging, often to micrometer-level monotony.

Through-hole boring, laser cutting, and surface area patterning enable assimilation right into multilayer packages and crossbreed circuits.

A crucial step in substratum manufacture is metallization– the application of conductive layers (typically tungsten, molybdenum, or copper) via procedures such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).

For DBC, copper foils are bonded to AlN surface areas at raised temperatures in a controlled ambience, developing a strong interface suitable for high-current applications.

Alternate strategies like active metal brazing (AMB) make use of titanium-containing solders to enhance adhesion and thermal fatigue resistance, particularly under duplicated power cycling.

Proper interfacial engineering ensures reduced thermal resistance and high mechanical reliability in running tools.

3. Performance Advantages in Electronic Systems

3.1 Thermal Administration in Power Electronics

AlN substratums excel in taking care of heat produced by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers used in electric lorries, renewable energy inverters, and telecoms framework.

Reliable warm extraction protects against local hotspots, reduces thermal stress, and expands tool life time by minimizing electromigration and delamination dangers.

Contrasted to standard Al ₂ O five substrates, AlN enables smaller bundle sizes and greater power thickness because of its premium thermal conductivity, enabling designers to push performance limits without compromising integrity.

In LED illumination and laser diodes, where junction temperature level straight influences effectiveness and shade security, AlN substrates substantially improve luminescent result and operational lifespan.

Its coefficient of thermal growth (CTE ≈ 4.5 ppm/K) also very closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), minimizing thermo-mechanical tension throughout thermal biking.

3.2 Electric and Mechanical Dependability

Beyond thermal performance, AlN offers reduced dielectric loss (tan δ < 0.0005) and secure permittivity (εᵣ ≈ 8.9) throughout a broad frequency variety, making it suitable for high-frequency microwave and millimeter-wave circuits.

Its hermetic nature prevents wetness ingress, getting rid of rust risks in moist atmospheres– a crucial advantage over organic substrates.

Mechanically, AlN possesses high flexural stamina (300– 400 MPa) and firmness (HV ≈ 1200), ensuring longevity throughout handling, setting up, and area operation.

These features jointly contribute to boosted system integrity, lowered failure prices, and reduced complete cost of ownership in mission-critical applications.

4. Applications and Future Technological Frontiers

4.1 Industrial, Automotive, and Defense Equipments

AlN ceramic substrates are now conventional in sophisticated power components for industrial motor drives, wind and solar inverters, and onboard chargers in electrical and hybrid automobiles.

In aerospace and protection, they support radar systems, digital war units, and satellite communications, where efficiency under extreme problems is non-negotiable.

Clinical imaging equipment, consisting of X-ray generators and MRI systems, additionally benefit from AlN’s radiation resistance and signal honesty.

As electrification fads increase across transport and energy industries, need for AlN substratums remains to expand, driven by the requirement for small, efficient, and dependable power electronic devices.

4.2 Arising Assimilation and Lasting Advancement

Future advancements concentrate on integrating AlN right into three-dimensional packaging architectures, ingrained passive parts, and heterogeneous combination systems combining Si, SiC, and GaN tools.

Study into nanostructured AlN movies and single-crystal substrates aims to additional boost thermal conductivity towards theoretical limitations (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.

Efforts to decrease production prices via scalable powder synthesis, additive production of complicated ceramic structures, and recycling of scrap AlN are getting momentum to boost sustainability.

Furthermore, modeling tools making use of finite component evaluation (FEA) and machine learning are being employed to maximize substrate style for particular thermal and electrical tons.

Finally, light weight aluminum nitride ceramic substratums represent a keystone modern technology in modern-day electronic devices, distinctly bridging the gap between electric insulation and extraordinary thermal transmission.

Their duty in allowing high-efficiency, high-reliability power systems underscores their critical value in the ongoing development of digital and energy innovations.

5. Distributor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
