1. Product Residences and Structural Stability
1.1 Intrinsic Features of Silicon Carbide

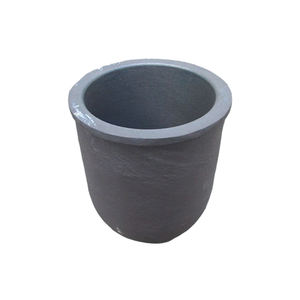

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms arranged in a tetrahedral lattice framework, primarily existing in over 250 polytypic kinds, with 6H, 4H, and 3C being the most technologically appropriate.
Its strong directional bonding conveys outstanding hardness (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m Ā· K )for pure solitary crystals), and exceptional chemical inertness, making it among the most durable materials for extreme settings.
The wide bandgap (2.9– 3.3 eV) makes certain outstanding electric insulation at area temperature level and high resistance to radiation damages, while its reduced thermal growth coefficient (~ 4.0 Ć 10 ā»ā¶/ K) adds to exceptional thermal shock resistance.
These inherent homes are maintained also at temperature levels going beyond 1600 Ā° C, permitting SiC to preserve architectural honesty under prolonged exposure to molten metals, slags, and reactive gases.
Unlike oxide porcelains such as alumina, SiC does not react conveniently with carbon or type low-melting eutectics in decreasing atmospheres, an important advantage in metallurgical and semiconductor handling.
When produced right into crucibles– vessels created to consist of and heat products– SiC exceeds traditional materials like quartz, graphite, and alumina in both life expectancy and process integrity.
1.2 Microstructure and Mechanical Stability
The efficiency of SiC crucibles is carefully connected to their microstructure, which depends on the manufacturing approach and sintering ingredients made use of.
Refractory-grade crucibles are generally produced via response bonding, where permeable carbon preforms are penetrated with molten silicon, developing Ī²-SiC via the reaction Si(l) + C(s) ā SiC(s).
This procedure produces a composite structure of main SiC with recurring free silicon (5– 10%), which improves thermal conductivity yet may restrict use above 1414 Ā° C(the melting factor of silicon).
Alternatively, fully sintered SiC crucibles are made through solid-state or liquid-phase sintering using boron and carbon or alumina-yttria additives, achieving near-theoretical thickness and greater pureness.
These exhibit remarkable creep resistance and oxidation security but are more expensive and challenging to make in large sizes.
( Silicon Carbide Crucibles)
The fine-grained, interlocking microstructure of sintered SiC supplies excellent resistance to thermal tiredness and mechanical disintegration, critical when taking care of liquified silicon, germanium, or III-V substances in crystal growth processes.
Grain boundary engineering, including the control of secondary phases and porosity, plays a crucial role in establishing lasting durability under cyclic home heating and hostile chemical atmospheres.
2. Thermal Efficiency and Environmental Resistance
2.1 Thermal Conductivity and Warm Circulation
One of the defining benefits of SiC crucibles is their high thermal conductivity, which enables rapid and consistent warmth transfer during high-temperature handling.
In contrast to low-conductivity products like merged silica (1– 2 W/(m Ā· K)), SiC successfully disperses thermal energy throughout the crucible wall, decreasing localized locations and thermal slopes.
This uniformity is essential in procedures such as directional solidification of multicrystalline silicon for photovoltaics, where temperature level homogeneity directly influences crystal top quality and issue thickness.
The combination of high conductivity and low thermal growth leads to an incredibly high thermal shock parameter (R = k(1 ā Ī½)Ī±/ Ļ), making SiC crucibles resistant to cracking during fast home heating or cooling down cycles.
This allows for faster heating system ramp rates, improved throughput, and reduced downtime as a result of crucible failure.
Moreover, the material’s capability to endure repeated thermal cycling without significant deterioration makes it excellent for batch handling in industrial heating systems operating above 1500 Ā° C.
2.2 Oxidation and Chemical Compatibility
At raised temperature levels in air, SiC undertakes passive oxidation, creating a safety layer of amorphous silica (SiO ā) on its surface area: SiC + 3/2 O TWO ā SiO TWO + CO.
This glassy layer densifies at high temperatures, working as a diffusion barrier that reduces further oxidation and maintains the underlying ceramic framework.
However, in lowering ambiences or vacuum problems– usual in semiconductor and metal refining– oxidation is subdued, and SiC stays chemically secure versus liquified silicon, aluminum, and many slags.
It resists dissolution and response with liquified silicon approximately 1410 Ā° C, although prolonged direct exposure can lead to minor carbon pick-up or interface roughening.
Crucially, SiC does not introduce metal contaminations into delicate thaws, a key demand for electronic-grade silicon manufacturing where contamination by Fe, Cu, or Cr must be kept below ppb levels.
However, care must be taken when refining alkaline planet metals or extremely responsive oxides, as some can wear away SiC at extreme temperatures.
3. Production Processes and Quality Assurance
3.1 Fabrication Techniques and Dimensional Control
The production of SiC crucibles entails shaping, drying, and high-temperature sintering or infiltration, with approaches chosen based upon needed pureness, size, and application.
Common creating techniques include isostatic pushing, extrusion, and slip casting, each providing various levels of dimensional accuracy and microstructural harmony.
For huge crucibles used in solar ingot casting, isostatic pressing ensures consistent wall surface density and density, minimizing the danger of crooked thermal expansion and failure.
Reaction-bonded SiC (RBSC) crucibles are affordable and extensively utilized in shops and solar industries, though recurring silicon limitations optimal service temperature.
Sintered SiC (SSiC) variations, while more pricey, deal superior pureness, stamina, and resistance to chemical assault, making them appropriate for high-value applications like GaAs or InP crystal growth.
Accuracy machining after sintering may be called for to attain tight resistances, specifically for crucibles utilized in upright slope freeze (VGF) or Czochralski (CZ) systems.
Surface area completing is important to lessen nucleation sites for flaws and make sure smooth melt flow during spreading.
3.2 Quality Control and Performance Validation
Rigorous quality control is essential to guarantee integrity and durability of SiC crucibles under requiring operational conditions.
Non-destructive assessment strategies such as ultrasonic screening and X-ray tomography are used to identify interior cracks, spaces, or thickness variations.
Chemical evaluation through XRF or ICP-MS confirms low levels of metal contaminations, while thermal conductivity and flexural strength are determined to verify material uniformity.
Crucibles are frequently subjected to simulated thermal biking tests before shipment to recognize potential failure modes.
Set traceability and certification are typical in semiconductor and aerospace supply chains, where element failing can cause expensive manufacturing losses.
4. Applications and Technological Impact
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play a crucial role in the manufacturing of high-purity silicon for both microelectronics and solar cells.
In directional solidification heating systems for multicrystalline photovoltaic or pv ingots, huge SiC crucibles function as the primary container for liquified silicon, sustaining temperatures above 1500 Ā° C for several cycles.
Their chemical inertness protects against contamination, while their thermal security makes sure consistent solidification fronts, resulting in higher-quality wafers with fewer misplacements and grain borders.
Some makers coat the inner surface area with silicon nitride or silica to further lower adhesion and assist in ingot release after cooling.
In research-scale Czochralski growth of compound semiconductors, smaller sized SiC crucibles are made use of to hold thaws of GaAs, InSb, or CdTe, where very little sensitivity and dimensional stability are extremely important.
4.2 Metallurgy, Factory, and Emerging Technologies
Past semiconductors, SiC crucibles are important in metal refining, alloy preparation, and laboratory-scale melting operations entailing aluminum, copper, and rare-earth elements.
Their resistance to thermal shock and erosion makes them suitable for induction and resistance heating systems in factories, where they outlive graphite and alumina choices by a number of cycles.
In additive production of reactive steels, SiC containers are used in vacuum cleaner induction melting to stop crucible breakdown and contamination.
Arising applications consist of molten salt activators and focused solar energy systems, where SiC vessels may contain high-temperature salts or fluid steels for thermal power storage space.
With ongoing advances in sintering technology and finishing design, SiC crucibles are positioned to support next-generation products handling, allowing cleaner, more reliable, and scalable commercial thermal systems.
In summary, silicon carbide crucibles stand for an essential making it possible for technology in high-temperature material synthesis, combining outstanding thermal, mechanical, and chemical efficiency in a single crafted part.
Their widespread adoption across semiconductor, solar, and metallurgical markets underscores their duty as a foundation of contemporary industrial porcelains.
