1. Product Fundamentals and Morphological Advantages
1.1 Crystal Structure and Chemical Make-up

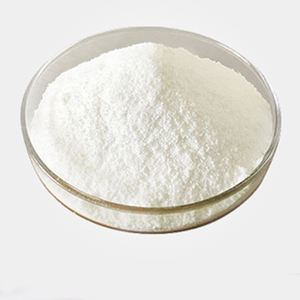

(Spherical alumina)
Spherical alumina, or round light weight aluminum oxide (Al two O FIVE), is an artificially created ceramic product defined by a distinct globular morphology and a crystalline framework mostly in the alpha (α) phase.
Alpha-alumina, one of the most thermodynamically steady polymorph, features a hexagonal close-packed plan of oxygen ions with light weight aluminum ions inhabiting two-thirds of the octahedral interstices, resulting in high latticework energy and remarkable chemical inertness.
This stage exhibits impressive thermal security, preserving stability as much as 1800 ° C, and resists response with acids, antacid, and molten steels under most industrial conditions.
Unlike irregular or angular alumina powders derived from bauxite calcination, round alumina is crafted through high-temperature processes such as plasma spheroidization or fire synthesis to attain consistent roundness and smooth surface texture.
The makeover from angular precursor particles– commonly calcined bauxite or gibbsite– to thick, isotropic balls removes sharp sides and interior porosity, boosting packing performance and mechanical longevity.
High-purity qualities (≥ 99.5% Al ₂ O SIX) are vital for electronic and semiconductor applications where ionic contamination must be reduced.
1.2 Particle Geometry and Packaging Habits
The defining attribute of round alumina is its near-perfect sphericity, typically evaluated by a sphericity index > 0.9, which significantly affects its flowability and packing density in composite systems.
Unlike angular bits that interlock and create voids, round bits roll past each other with minimal rubbing, enabling high solids filling during formulation of thermal interface materials (TIMs), encapsulants, and potting compounds.
This geometric harmony enables maximum academic packing thickness going beyond 70 vol%, far exceeding the 50– 60 vol% typical of uneven fillers.
Greater filler packing directly converts to boosted thermal conductivity in polymer matrices, as the continual ceramic network offers efficient phonon transportation pathways.
Additionally, the smooth surface reduces wear on handling tools and lessens viscosity rise throughout blending, improving processability and diffusion security.
The isotropic nature of spheres additionally protects against orientation-dependent anisotropy in thermal and mechanical properties, making certain regular performance in all directions.
2. Synthesis Techniques and Quality Control
2.1 High-Temperature Spheroidization Strategies
The production of spherical alumina primarily relies on thermal approaches that melt angular alumina fragments and enable surface area tension to reshape them into balls.

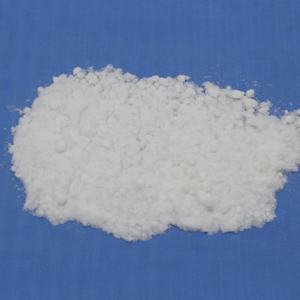

( Spherical alumina)
Plasma spheroidization is one of the most commonly made use of industrial approach, where alumina powder is injected into a high-temperature plasma fire (approximately 10,000 K), causing immediate melting and surface tension-driven densification right into ideal balls.
The liquified beads strengthen swiftly throughout flight, developing thick, non-porous particles with consistent dimension distribution when paired with precise classification.
Alternative approaches consist of fire spheroidization making use of oxy-fuel torches and microwave-assisted home heating, though these usually offer reduced throughput or less control over bit dimension.
The starting product’s pureness and particle dimension distribution are crucial; submicron or micron-scale precursors produce likewise sized spheres after handling.
Post-synthesis, the product undertakes extensive sieving, electrostatic splitting up, and laser diffraction analysis to guarantee tight fragment dimension distribution (PSD), generally ranging from 1 to 50 µm relying on application.
2.2 Surface Area Modification and Useful Customizing
To enhance compatibility with natural matrices such as silicones, epoxies, and polyurethanes, spherical alumina is typically surface-treated with coupling representatives.
Silane combining representatives– such as amino, epoxy, or vinyl useful silanes– kind covalent bonds with hydroxyl groups on the alumina surface area while giving natural performance that interacts with the polymer matrix.
This therapy enhances interfacial attachment, lowers filler-matrix thermal resistance, and prevents load, bring about even more uniform composites with superior mechanical and thermal performance.
Surface layers can also be crafted to impart hydrophobicity, boost diffusion in nonpolar materials, or make it possible for stimuli-responsive habits in wise thermal products.
Quality assurance includes measurements of BET surface area, faucet density, thermal conductivity (generally 25– 35 W/(m · K )for thick α-alumina), and contamination profiling using ICP-MS to omit Fe, Na, and K at ppm degrees.
Batch-to-batch consistency is necessary for high-reliability applications in electronics and aerospace.
3. Thermal and Mechanical Efficiency in Composites
3.1 Thermal Conductivity and User Interface Engineering
Round alumina is mostly employed as a high-performance filler to boost the thermal conductivity of polymer-based products utilized in digital product packaging, LED lighting, and power modules.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), loading with 60– 70 vol% spherical alumina can boost this to 2– 5 W/(m · K), adequate for effective warm dissipation in compact tools.
The high inherent thermal conductivity of α-alumina, combined with very little phonon scattering at smooth particle-particle and particle-matrix user interfaces, makes it possible for reliable heat transfer through percolation networks.
Interfacial thermal resistance (Kapitza resistance) stays a limiting aspect, however surface functionalization and enhanced dispersion methods help minimize this barrier.
In thermal user interface materials (TIMs), round alumina reduces get in touch with resistance in between heat-generating components (e.g., CPUs, IGBTs) and warmth sinks, preventing overheating and expanding device life-span.
Its electrical insulation (resistivity > 10 ¹² Ω · centimeters) ensures safety and security in high-voltage applications, distinguishing it from conductive fillers like steel or graphite.
3.2 Mechanical Security and Reliability
Past thermal efficiency, spherical alumina enhances the mechanical toughness of composites by increasing hardness, modulus, and dimensional stability.
The round shape distributes stress uniformly, decreasing crack initiation and propagation under thermal biking or mechanical lots.
This is especially essential in underfill materials and encapsulants for flip-chip and 3D-packaged gadgets, where coefficient of thermal expansion (CTE) mismatch can cause delamination.
By changing filler loading and fragment dimension circulation (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or published motherboard, decreasing thermo-mechanical anxiety.
Additionally, the chemical inertness of alumina protects against deterioration in moist or corrosive environments, making sure long-term reliability in automotive, industrial, and outdoor electronics.
4. Applications and Technical Development
4.1 Electronics and Electric Car Systems
Round alumina is a crucial enabler in the thermal management of high-power electronic devices, including protected gateway bipolar transistors (IGBTs), power products, and battery administration systems in electric cars (EVs).
In EV battery packs, it is incorporated right into potting compounds and phase modification materials to avoid thermal runaway by evenly dispersing warm throughout cells.
LED producers utilize it in encapsulants and secondary optics to keep lumen output and shade uniformity by reducing joint temperature level.
In 5G facilities and information facilities, where warm change densities are increasing, round alumina-filled TIMs make sure stable procedure of high-frequency chips and laser diodes.
Its role is expanding into sophisticated product packaging modern technologies such as fan-out wafer-level product packaging (FOWLP) and embedded die systems.
4.2 Arising Frontiers and Sustainable Development
Future growths concentrate on crossbreed filler systems combining round alumina with boron nitride, aluminum nitride, or graphene to achieve synergistic thermal efficiency while keeping electric insulation.
Nano-spherical alumina (sub-100 nm) is being explored for clear porcelains, UV layers, and biomedical applications, though challenges in dispersion and cost continue to be.
Additive production of thermally conductive polymer composites utilizing round alumina enables facility, topology-optimized warmth dissipation frameworks.
Sustainability efforts consist of energy-efficient spheroidization processes, recycling of off-spec product, and life-cycle analysis to decrease the carbon footprint of high-performance thermal products.
In recap, round alumina represents a crucial engineered material at the junction of ceramics, compounds, and thermal scientific research.
Its unique mix of morphology, purity, and efficiency makes it important in the continuous miniaturization and power accumulation of modern-day electronic and energy systems.
