1. Material Scientific Research and Structural Properties
1.1 Crystal Structure and Chemical Stability

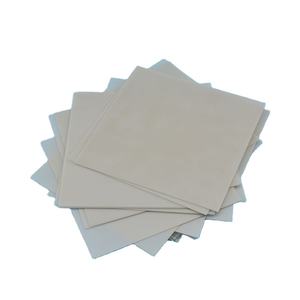

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a wide bandgap semiconductor ceramic with a hexagonal wurtzite crystal framework, composed of alternating layers of aluminum and nitrogen atoms bound through solid covalent communications.
This durable atomic arrangement enhances AlN with phenomenal thermal stability, keeping structural integrity up to 2200 ° C in inert ambiences and standing up to decomposition under extreme thermal biking.
Unlike alumina (Al ₂ O ₃), AlN is chemically inert to molten steels and many responsive gases, making it appropriate for rough environments such as semiconductor processing chambers and high-temperature furnaces.
Its high resistance to oxidation– developing just a slim safety Al ₂ O four layer at surface area upon direct exposure to air– guarantees long-term dependability without significant deterioration of mass properties.
In addition, AlN shows superb electric insulation with a resistivity exceeding 10 ¹⁴ Ω · centimeters and a dielectric stamina above 30 kV/mm, critical for high-voltage applications.
1.2 Thermal Conductivity and Digital Attributes
The most defining feature of light weight aluminum nitride is its impressive thermal conductivity, generally varying from 140 to 180 W/(m · K )for commercial-grade substratums– over five times greater than that of alumina (≈ 30 W/(m · K)).
This performance originates from the reduced atomic mass of nitrogen and light weight aluminum, combined with strong bonding and minimal factor defects, which allow effective phonon transport via the lattice.
However, oxygen contaminations are particularly detrimental; also trace amounts (over 100 ppm) alternative to nitrogen sites, producing aluminum vacancies and spreading phonons, therefore drastically decreasing thermal conductivity.
High-purity AlN powders synthesized through carbothermal reduction or straight nitridation are vital to attain optimal warm dissipation.
Despite being an electric insulator, AlN’s piezoelectric and pyroelectric buildings make it beneficial in sensing units and acoustic wave tools, while its broad bandgap (~ 6.2 eV) sustains procedure in high-power and high-frequency electronic systems.
2. Manufacture Procedures and Manufacturing Difficulties

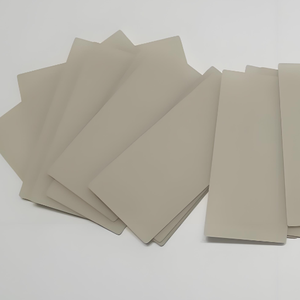

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Making high-performance AlN substratums starts with the synthesis of ultra-fine, high-purity powder, frequently achieved through reactions such as Al ₂ O TWO + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or direct nitridation of light weight aluminum steel: 2Al + N TWO → 2AlN.
The resulting powder has to be meticulously milled and doped with sintering help like Y ₂ O ₃, CaO, or uncommon planet oxides to promote densification at temperature levels in between 1700 ° C and 1900 ° C under nitrogen environment.
These additives form short-term liquid phases that improve grain boundary diffusion, making it possible for full densification (> 99% theoretical thickness) while minimizing oxygen contamination.
Post-sintering annealing in carbon-rich atmospheres can better decrease oxygen content by eliminating intergranular oxides, thereby recovering peak thermal conductivity.
Accomplishing consistent microstructure with regulated grain size is essential to balance mechanical strength, thermal efficiency, and manufacturability.
2.2 Substratum Shaping and Metallization
When sintered, AlN porcelains are precision-ground and splashed to satisfy tight dimensional resistances needed for electronic product packaging, usually down to micrometer-level flatness.
Through-hole boring, laser cutting, and surface area patterning make it possible for assimilation into multilayer bundles and crossbreed circuits.
A vital action in substratum manufacture is metallization– the application of conductive layers (normally tungsten, molybdenum, or copper) by means of procedures such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper foils are adhered to AlN surfaces at elevated temperature levels in a controlled atmosphere, developing a strong interface ideal for high-current applications.
Different methods like energetic metal brazing (AMB) make use of titanium-containing solders to improve adhesion and thermal exhaustion resistance, especially under repeated power cycling.
Proper interfacial design guarantees reduced thermal resistance and high mechanical reliability in running gadgets.
3. Performance Advantages in Electronic Solution
3.1 Thermal Monitoring in Power Electronic Devices
AlN substrates excel in managing warmth created by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers utilized in electric vehicles, renewable energy inverters, and telecommunications facilities.
Reliable warm extraction protects against local hotspots, minimizes thermal anxiety, and extends device lifetime by reducing electromigration and delamination risks.
Compared to conventional Al ₂ O five substratums, AlN allows smaller bundle sizes and greater power thickness because of its remarkable thermal conductivity, allowing developers to push performance limits without compromising reliability.
In LED illumination and laser diodes, where junction temperature level directly affects performance and color stability, AlN substratums substantially improve luminous result and operational life expectancy.
Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) additionally closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), reducing thermo-mechanical stress throughout thermal biking.
3.2 Electric and Mechanical Integrity
Beyond thermal efficiency, AlN uses low dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) across a broad frequency array, making it suitable for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature protects against wetness ingress, eliminating rust risks in moist settings– a vital advantage over organic substratums.
Mechanically, AlN possesses high flexural stamina (300– 400 MPa) and solidity (HV ≈ 1200), ensuring sturdiness during handling, setting up, and area procedure.
These features collectively contribute to enhanced system dependability, decreased failure prices, and reduced total cost of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Equipments
AlN ceramic substratums are now basic in innovative power modules for commercial electric motor drives, wind and solar inverters, and onboard chargers in electric and hybrid automobiles.
In aerospace and defense, they sustain radar systems, electronic warfare systems, and satellite communications, where performance under severe problems is non-negotiable.
Medical imaging equipment, consisting of X-ray generators and MRI systems, also take advantage of AlN’s radiation resistance and signal integrity.
As electrification patterns increase throughout transportation and energy industries, demand for AlN substratums remains to expand, driven by the demand for compact, efficient, and reliable power electronic devices.
4.2 Arising Assimilation and Sustainable Growth
Future innovations concentrate on integrating AlN into three-dimensional packaging styles, ingrained passive components, and heterogeneous combination platforms incorporating Si, SiC, and GaN tools.
Research into nanostructured AlN movies and single-crystal substrates intends to additional increase thermal conductivity towards academic limitations (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.
Initiatives to lower production costs via scalable powder synthesis, additive production of complicated ceramic structures, and recycling of scrap AlN are gaining energy to enhance sustainability.
Furthermore, modeling tools making use of limited aspect evaluation (FEA) and machine learning are being employed to optimize substrate layout for certain thermal and electrical loads.
To conclude, light weight aluminum nitride ceramic substratums stand for a foundation technology in contemporary electronic devices, distinctly connecting the gap in between electrical insulation and phenomenal thermal conduction.
Their function in enabling high-efficiency, high-reliability power systems emphasizes their critical relevance in the continuous evolution of electronic and power modern technologies.
