1. Product Principles and Microstructural Characteristics
1.1 Make-up and Crystallographic Characteristic of Al ₂ O THREE
(Alumina Ceramic Balls， Alumina Ceramic Balls)

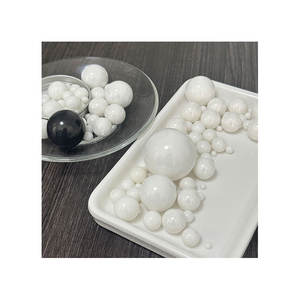

Alumina ceramic spheres are round components fabricated from aluminum oxide (Al ₂ O ₃), a completely oxidized, polycrystalline ceramic that exhibits phenomenal solidity, chemical inertness, and thermal security.
The main crystalline stage in high-performance alumina rounds is α-alumina, which adopts a corundum-type hexagonal close-packed structure where light weight aluminum ions inhabit two-thirds of the octahedral interstices within an oxygen anion latticework, providing high latticework power and resistance to stage improvement.
Industrial-grade alumina rounds generally have 85% to 99.9% Al ₂ O THREE, with pureness straight influencing mechanical strength, put on resistance, and corrosion efficiency.
High-purity grades (≥ 95% Al ₂ O FOUR) are sintered to near-theoretical density (> 99%) making use of advanced techniques such as pressureless sintering or hot isostatic pressing, minimizing porosity and intergranular problems that might function as tension concentrators.
The resulting microstructure consists of fine, equiaxed grains uniformly distributed throughout the volume, with grain dimensions usually ranging from 1 to 5 micrometers, enhanced to stabilize sturdiness and hardness.
1.2 Mechanical and Physical Building Account
Alumina ceramic spheres are renowned for their extreme hardness– determined at approximately 1800– 2000 HV on the Vickers range– exceeding most steels and measuring up to tungsten carbide, making them ideal for wear-intensive atmospheres.
Their high compressive strength (approximately 2500 MPa) makes certain dimensional stability under load, while reduced flexible deformation enhances precision in rolling and grinding applications.
Despite their brittleness relative to metals, alumina rounds show excellent fracture toughness for ceramics, especially when grain development is controlled throughout sintering.
They keep structural stability throughout a wide temperature array, from cryogenic problems approximately 1600 ° C in oxidizing atmospheres, far going beyond the thermal limitations of polymer or steel counterparts.
In addition, their low thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) reduces thermal shock vulnerability, enabling usage in quickly fluctuating thermal atmospheres such as kilns and warmth exchangers.
2. Production Processes and Quality Assurance
()
2.1 Forming and Sintering Techniques
The production of alumina ceramic balls begins with high-purity alumina powder, frequently stemmed from calcined bauxite or chemically precipitated hydrates, which is crushed to attain submicron particle dimension and narrow dimension distribution.
Powders are after that formed into round environment-friendly bodies making use of methods such as extrusion-spheronization, spray drying, or round forming in turning pans, depending on the desired dimension and set scale.
After forming, eco-friendly rounds go through a binder exhaustion stage complied with by high-temperature sintering, normally between 1500 ° C and 1700 ° C, where diffusion mechanisms drive densification and grain coarsening.
Exact control of sintering atmosphere (air or controlled oxygen partial stress), home heating rate, and dwell time is critical to achieving uniform shrinkage, round geometry, and minimal interior flaws.
For ultra-high-performance applications, post-sintering therapies such as warm isostatic pressing (HIP) may be applied to eliminate residual microporosity and even more enhance mechanical reliability.
2.2 Precision Finishing and Metrological Confirmation
Adhering to sintering, alumina spheres are ground and brightened using diamond-impregnated media to attain limited dimensional resistances and surface area coatings equivalent to bearing-grade steel balls.
Surface roughness is normally minimized to much less than 0.05 μm Ra, reducing rubbing and wear in dynamic get in touch with circumstances.
Important high quality specifications consist of sphericity (deviation from perfect satiation), size variation, surface area integrity, and density harmony, all of which are determined making use of optical interferometry, coordinate gauging makers (CMM), and laser profilometry.
International standards such as ISO 3290 and ANSI/ABMA specify tolerance qualities for ceramic rounds used in bearings, ensuring interchangeability and efficiency uniformity throughout makers.
Non-destructive screening methods like ultrasonic examination or X-ray microtomography are used to detect internal cracks, voids, or incorporations that can jeopardize lasting reliability.
3. Functional Advantages Over Metallic and Polymer Counterparts
3.1 Chemical and Rust Resistance in Harsh Environments
Among the most considerable benefits of alumina ceramic balls is their impressive resistance to chemical strike.
They continue to be inert in the existence of solid acids (other than hydrofluoric acid), alkalis, organic solvents, and saline solutions, making them appropriate for usage in chemical handling, pharmaceutical production, and aquatic applications where steel parts would certainly wear away rapidly.
This inertness avoids contamination of delicate media, an essential factor in food processing, semiconductor manufacture, and biomedical devices.
Unlike steel rounds, alumina does not produce corrosion or metal ions, making sure procedure pureness and decreasing maintenance regularity.
Their non-magnetic nature further expands applicability to MRI-compatible gadgets and electronic assembly lines where magnetic disturbance need to be avoided.
3.2 Wear Resistance and Long Life Span
In rough or high-cycle settings, alumina ceramic balls exhibit wear rates orders of size lower than steel or polymer choices.
This phenomenal sturdiness equates into extended service intervals, decreased downtime, and reduced complete expense of ownership regardless of greater preliminary procurement expenses.
They are commonly used as grinding media in ball mills for pigment diffusion, mineral handling, and nanomaterial synthesis, where their inertness avoids contamination and their solidity makes sure efficient particle size decrease.
In mechanical seals and valve elements, alumina balls keep limited resistances over millions of cycles, withstanding erosion from particulate-laden fluids.
4. Industrial and Arising Applications
4.1 Bearings, Shutoffs, and Liquid Handling Solutions
Alumina ceramic spheres are essential to hybrid sphere bearings, where they are coupled with steel or silicon nitride races to incorporate the reduced density and deterioration resistance of porcelains with the toughness of metals.
Their reduced thickness (~ 3.9 g/cm TWO, regarding 40% lighter than steel) minimizes centrifugal filling at high rotational speeds, allowing faster procedure with reduced warmth generation and enhanced power performance.
Such bearings are made use of in high-speed pins, dental handpieces, and aerospace systems where reliability under extreme conditions is critical.
In fluid control applications, alumina rounds act as check valve aspects in pumps and metering devices, specifically for hostile chemicals, high-purity water, or ultra-high vacuum systems.
Their smooth surface and dimensional stability make sure repeatable sealing efficiency and resistance to galling or confiscating.
4.2 Biomedical, Power, and Advanced Technology Uses
Beyond traditional industrial duties, alumina ceramic balls are discovering use in biomedical implants and analysis devices as a result of their biocompatibility and radiolucency.
They are employed in artificial joints and oral prosthetics where wear particles have to be lessened to avoid inflammatory feedbacks.
In energy systems, they work as inert tracers in storage tank characterization or as heat-stable elements in concentrated solar energy and fuel cell settings up.
Research study is also checking out functionalized alumina spheres for catalytic assistance, sensing unit aspects, and precision calibration standards in metrology.
In summary, alumina ceramic spheres exemplify exactly how sophisticated porcelains connect the void in between architectural robustness and useful accuracy.
Their unique combination of hardness, chemical inertness, thermal security, and dimensional precision makes them crucial popular engineering systems across diverse markets.
As manufacturing techniques continue to improve, their performance and application range are anticipated to expand further into next-generation technologies.
