Check out the thorough guide to oil submersed transformers, including oil submersed power transformers and oil submersed distribution transformers. Discover their working principles, kinds, benefits, and progressing duty in clever grids and renewable energy.
1. Intro to Oil Immersed Transformers
In the detailed web of our modern-day electric grid, transformers play an important role, quietly tipping voltage backwards and forwards to make sure power can be sent successfully over cross countries and distributed securely to our homes and markets. Among the various types readily available, the oil submersed transformer stands as a testimony to tested dependability and resilience. For decades, these workhorses have actually formed the backbone of power systems worldwide.
An oil submersed transformer is a sort of electrical transformer that makes use of a specific insulating oil as both a coolant and a shielding tool. This layout is mostly made use of for medium to high-power applications, making it a keystone of electric facilities. This guide delves deep right into the world of oil immersed power transformers and oil immersed distribution transformers, exploring their technology, applications, and their advancing function in an age of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil immersed transformer consists of a magnetic core and copper or aluminum windings housed inside a sealed container loaded with shielding oil. The primary feature of the oil is twofold:
1. Insulation: The oil possesses high dielectric stamina, properly protecting the high-voltage windings from the transformer’s core and based storage tank. This protects against brief circuits and electrical malfunctions.
2. Air conditioning: As the transformer runs, the windings create considerable warmth as a result of I ² R losses. The flowing oil absorbs this warmth, convects it to the transformer’s tank walls, and dissipates it into the bordering air. Bigger units usually feature radiators or fins to raise the area for a lot more reliable cooling.
This dual-purpose use of oil makes the oil immersed transformer incredibly reliable and robust, capable of managing high loads and enduring short-term overloads better than lots of dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these units are oil submersed transformers, they offer distinct functions within the power system network. Recognizing the difference is critical.
An oil immersed power transformer is a heavyweight, commonly utilized in transmission networks at producing terminals and major substations. Their key function is to “step-up” the voltage produced at the nuclear power plant to extremely high levels (e.g., 138 kV, 230 kV, 500 kV and above) for effective long-distance transmission, and to “step-down” the voltage at obtaining substations for further distribution. They are characterized by their really high power rankings (frequently exceeding 100 MVA), complex building and construction, and on-load faucet changers for voltage law.
An oil immersed circulation transformer, on the various other hand, executes the final step in the power delivery chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it to the low voltages (e.g., 400/230 V) used by business and residential customers. You typically discover them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have lower power ratings (generally as much as 2,500 kVA), and are created for maximum efficiency at lower, more continuous loads.

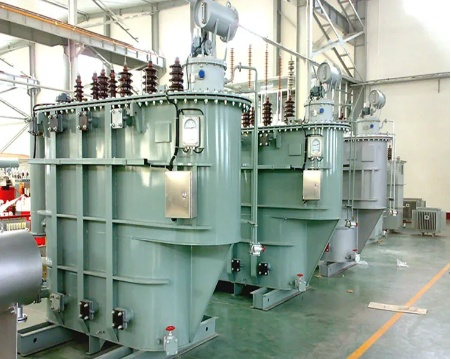

(Oil immersed power transformer)
2. Secret Advantages of Oil Immersed Transformers
The enduring popularity of the oil immersed transformer is not accidental. It offers a suite of compelling advantages that make it the preferred choice for numerous demanding applications.
2.1 Superior Air Conditioning and Overload Ability
The exceptional thermal ability of oil contrasted to air enables an oil submersed power transformer to take care of and dissipate warm far more effectively. This equates to a greater overload capacity. Throughout durations of optimal electrical energy need, an oil submersed transformer can take care of temporary overloads without suffering damage, an important attribute for preserving grid security. The oil’s blood circulation guarantees even heat distribution, preventing local hot spots that can degrade insulation gradually.
2.2 Improved Insulation and Long Life Span
The combination of high-quality mineral oil and diligently fertilized paper insulation develops a dielectric system of phenomenal stamina. This robust insulation system secures the transformer from voltage rises and transients, contributing to a functional life expectancy that can extend to 30-40 years or more with proper maintenance. The sealed container additionally secures the internal elements from moisture, dirt, and various other climatic impurities.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil submersed transformer is typically one of the most economical option. The materials used– mineral oil, steel tank, and copper/aluminum windings– use a desirable balance of performance and cost. The high performance of these transformers, especially at their rated lots, results in lower energy losses over their lifetime, bring about considerable expense financial savings for energy firms and huge industrial individuals.
3. Warm Subjects and Future Trends
The world of oil submersed transformers is not static. It is continuously evolving to fulfill new challenges and incorporate with modern-day innovations.
3.1 Biodegradable and Fire-Resistant Oils
Environmental and safety and security problems are driving a substantial shift away from traditional mineral oil. The market is rapidly taking on oil immersed transformers full of naturally degradable esters (synthetic or all-natural). These oils offer a higher fire factor (making them K-class fireproof), are much less harmful, and are easily biodegradable, considerably lowering the ecological influence in instance of a leak. This trend is making oil immersed circulation transformers much safer for installment in city locations and ecologically sensitive areas.
3.2 Integration with Smart Grids and IoT
The contemporary oil immersed power transformer is becoming an intelligent node in the wise grid. Sensors are being integrated to keep an eye on vital criteria in real-time, including:
Dissolved Gas Analysis (DGA): Identifying mistake gases generated within the oil to anticipate incipient faults.
Temperature Tracking: Tracking top-oil and hotspot temperature levels.
Tons and Power Quality Monitoring.
This information, sent through IoT (Internet of Points) systems, enables anticipating upkeep, prevents unintended outages, and optimizes transformer utilization and lifespan.
3.3 Sustaining the Renewable Energy Change
The international promote renewables is creating brand-new demand for oil submersed transformers. Massive solar ranches and wind power setups need robust oil submersed power transformers to tip up the generated voltage to transmission levels. Moreover, the intermittent nature of renewables locations greater tension on grid parts, and the tried and tested integrity and overload ability of oil submersed transformers make them ideal for this essential duty.
4. Choice and Maintenance Best Practices
Picking the appropriate transformer and preserving it properly is vital to a trustworthy power system.
4.1 How to Pick the Right Oil Immersed Transformer
Picking between an oil submersed power transformer and an oil submersed circulation transformer depends upon the application. Key factors to consider consist of:
1. Voltage Degree and kVA Rating: Match the transformer’s requirements to your system’s needs.
2. Application: Transmission substation, industrial plant, or commercial circulation.
3. Location: Indoor vs. exterior, environmental conditions, and fire safety guidelines (which may affect the selection of protecting oil).
4. Efficiency Requirements: Abide by regional effectiveness standards like DOE (U.S.A.) or EU CoC (Europe).
5. Budget: Take into consideration both the first capital price and the complete cost of possession, including losses.

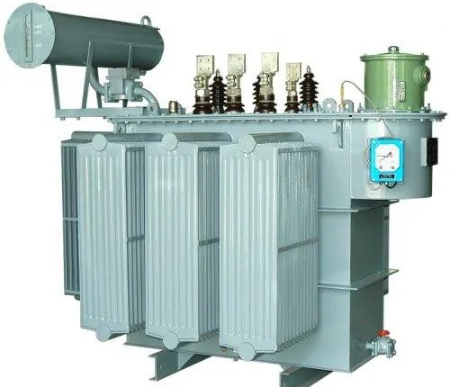

(Oil immersed distribution transformer)
4.2 Crucial Maintenance for Longevity
Positive maintenance is essential for any kind of oil submersed transformer. A thorough program must consist of:
1. Regular Oil Tasting and Testing: Periodic DGA and screening of dielectric stamina and dampness content are the most efficient means to evaluate the wellness of the transformer.
2. Bushing and Insulation Examination: Visual look for splits, contamination, or leaks.
3. Faucet Changer Maintenance: Routine evaluation and maintenance of on-load or off-load faucet changers.
4. Maintain it Clean and Dry: Ensuring the container exterior, radiators, and breathers are clean and functional.
The oil submersed transformer, in its duties as both a high-capacity oil immersed power transformer and a common oil submersed circulation transformer, continues to be an irreplaceable component of our global energy infrastructure. Its proven design, paired with recurring advancements in protecting liquids and electronic monitoring, ensures it will certainly remain to be a reputable, efficient, and smart service for powering our globe for years ahead. As we construct the grids of the future, incorporating even more renewables and electronic knowledge, the robust and adaptable oil submersed transformer will definitely be at the heart of it.
