Bearings are commonly called the “joints of sector.” Obtaining the choice right directly affects your devices’s integrity, service life, and upkeep costs. Lots of bearing failures do not originate from poor quality– they originate from wrong selections. Things like tons calculation mistakes, neglecting speed limitations, or choosing the incorrect lubrication approach. These small mistakes can trigger equipment to damage down early in its service life. This guide strolls you with the entire selection procedure, giving designers and purchase specialists a clear course from evaluating working problems to confirming the right bearing design.
Component One: What You Required to Know Prior To Beginning
Before you open up any bearing brochure, ask yourself one concern: What exactly does this machine require the bearing to do? The solution depends on 5 key locations:
1. Lots Characteristics
Tons is the number one consider birthing option. You need to find out 3 points:
Direction: Is it radial load (vertical to the shaft), axial load (parallel to the shaft), or a mix of both?
Size: Is it light, moderate, or heavy? Any influence tons?
Nature: Is the load steady or changing? Exactly how frequently do effect loads happen and how strong are they?
Take a belt conveyor as an example. The bearings at the drive end tackle radial loads from belt stress, the weight of the belt and rollers, plus the shaft assembly. When computing, you need to take into consideration various operating problems– startup, typical operating, braking– and use the worst-case circumstance for your design.
2. Speed Problems
(bearings for steel mill)
Speed is an additional essential factor affecting birthing life. According to tiredness life concept, bearing life has an inverse connection with speed. For variable speed problems, you need to calculate the equivalent speed. Take a rotating kiln assistance roller– its rate might range from 0.5 to 2.5 r/min. You ‘d need to weight the running time at each rate to get an equivalent value.
Something to watch out for: recognizing only the maximum rate can mess up your lubrication approach. The lube you choose based upon full throttle might not form a correct oil movie at reduced speeds. Likewise, if your machine has long still periods, you should point out that– or else neighboring devices vibrations could trigger incorrect brinelling damage.
3. Required Service Life
Birthing life span is normally revealed as L10h (the number of hours that 90% of a bearing team will certainly get to before fatigue spalling shows up). An usual mistake is choosing an overly lengthy life– once L10h exceeds 100,000 hours, the bearing dimension gets too big. It becomes harder to lubricate, torque increases, and it ends up being more conscious minimum lots. Ultimately, it could stop working for factors other than fatigue.
4. Space Constraints
You should know your available space restrictions from the beginning– shaft size array, real estate birthed size, axial length restrictions. As soon as you recognize the matching shaft size and offered room, you can quickly narrow down your alternatives.
5. Running Accuracy Needs
A lot of applications do just great with standard accuracy bearings. However, for high-speed or high-precision tools like device tool pins, you’ll require P5, P4, or perhaps greater qualities. Simply keep in mind that choosing greater precision without a real need will drive up costs substantially. Suit the grade to your actual needs.
Sequel: Matching Bearing Kinds to Working Issues
When you have those criteria clear, the following step is to match the ideal bearing kind based upon tons instructions, dimension, rate, and imbalance resistance.
1. Lots Instructions: Radial, Axial, or Integrated?
This is one of the most fundamental filter. It can point you to a few prospects as soon as possible:

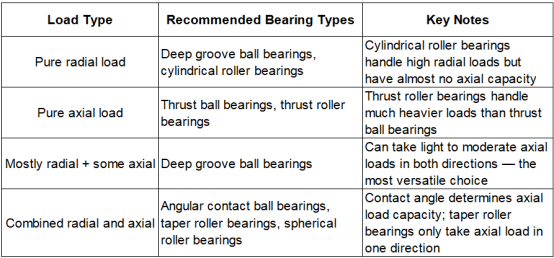

When the axial-to-radial tons proportion (Fa/Fr) modifications, your choice logic changes too. At reduced ratios, select deep groove ball bearings. At modest ratios, make use of small-contact-angle angular call bearings or taper roller bearings. At high proportions, you’ll need large-contact-angle bearings, or think about integrating a drive bearing with a radial bearing.
( Radial)
2. Load Size: Ball Bearings or Roller Bearings?
This is a traditional choice:
Light or moderate loads: Go with sphere bearings (deep groove or angular get in touch with). The factor call between balls and raceways provides reduced friction, making them ideal for tool to broadband.
Heavy or influence tons: You must utilize roller bearings (round, spherical, or taper). Line get in touch with in between rollers and raceways gives a lot higher tons ability and much better impact resistance.
3. Speed: Sphere Bearings for High Speed, Roller Bearings for Low
Usually speaking, round bearings have higher rate limits than roller bearings. For high-speed applications (over 1000 r/min), placed round bearings on top of your listing. When you require the greatest possible rate with pure radial lots, open deep groove round bearings are your best choice. For combined lots at broadband, angular get in touch with round bearings are the means to go.
Cylindrical roller bearings, taper roller bearings, and needle bearings have fairly reduced speed limitations. They’re mostly suited for low-to-medium rate, heavy-load conditions.
4. Imbalance Tolerance: Do You Need Self-Aligning?
This set typically gets forgotten yet it’s very important. You should take into consideration self-aligning bearings when:
Birthing housing bores do not line up well
The shaft isn’t tight adequate and bends during operation
The bearing span is long and thermal expansion triggers angular misalignment
You’re making use of different split real estates (like cushion block bearings)
Round roller bearings and round ball bearings have concave outer ring raceways. This enables a certain quantity of angular imbalance between the internal and outer rings without dangerous side tension. They can make up for both dynamic deflection and static setup mistakes.
On the other hand, round roller bearings, taper roller bearings, and needle bearings have really minimal self-aligning capacity. Also a tiny angular misalignment can trigger stress focus at the roller ends, leading to high side pressures that dramatically shorten birthing life. Deep groove ball bearings do have some self-aligning ability, however the allowable angle is small– going beyond it will reduce life also.
5. Axial Expansion Payment: Fixed End or Floating End?
Long shafts expand and contract with temperature changes throughout procedure. That suggests you need to establish your bearing setup with one fixed end and one floating end.
NU and N series round roller bearings have no flanges on the inner ring (or on one side). This allows the shaft relocation openly in the axial instructions about the real estate– making them ideal as floating-end bearings. NJ and NUP collection can give axial positioning in one or both instructions, so they function well as fixed-end bearings. This arrangement is extremely typical in gearboxes and electric motors.

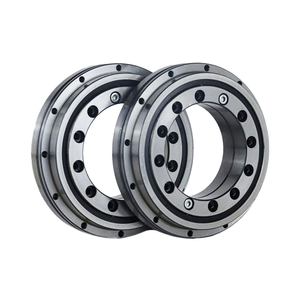

Component 3: BMB Product at a Glance

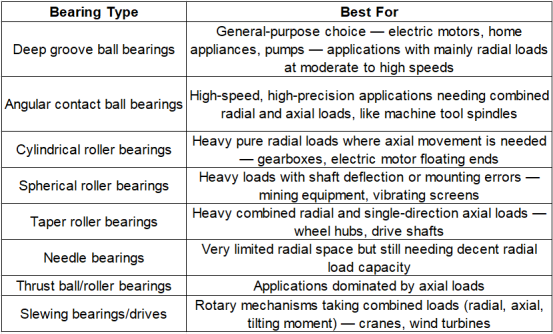

BMB supplies a total series of industrial bearings, covering all the significant kinds we have actually discussed. This fast recommendation table connects the option principles above straight to specific item classifications:
Part 4: Diving Deeper– Precision, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Criterion accuracy (P0) benefits the huge majority of general machinery. For precision tools like device spindles or aerospace parts, you’ll need P5 or higher. Tighter accuracy indicates tighter dimensional resistances and much better running accuracy– but also higher costs.
2. Inner Clearance and Preload
Bearings need to maintain correct interior clearance after installment. Way too much clearance leads to resonance and sound. Insufficient, and thermal growth can create the bearing to take. In special cases like device spindles, preload (using negative clearance) is utilized to enhance system strength and rotational accuracy.
3. Lubricant Option
Lubrication is a make-or-break variable for birthing life. Oil helps the majority of moderate-speed and temperature level applications– it’s simple to secure and can run maintenance-free for long periods. Oil (oil bathroom, oil mist, jet lubrication) is much better for high-speed or high-temperature problems, as it dissipates heat better. When choosing a lube, check the speed aspect (ndm worth). Do not just select based on maximum speed– the oil you choose may not create a correct movie at reduced rates.
4. Securing Arrangements
Pick the seal type based on your atmosphere: contact seals maintain dust out well but add some rubbing; non-contact seals work for broadband yet provide less security against contamination; open bearings count on exterior securing systems.
Component Five: Life Calculation– From Concept to Method
( or Combined Basic Filter Table)
At the end of the day, you require to verify whether your chosen bearing will in fact meet the expected life span. This is where fundamental ranking life calculation comes in.
The fundamental ranking life L10 formula (ISO 281 standard):
For sphere bearings: L10 = (C/P) THREE × (10 ⁶/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours
Where:
C: fundamental vibrant tons score (kN)– found in the item catalog
P: equal vibrant tons (kN)– takes both radial and axial loads into account
The equal dynamic load P is computed as: P = X · Fr + Y · Fa
Fr is the radial load, Fa is the axial load
X and Y are coefficients that depend upon bearing kind and the Fa/Fr proportion– inspect the brochure for these values
For more demanding problems, you can apply adjustment factors: Ln = a1 × a2 × a3 × L10
a1 is the integrity factor (a1 = 1 for 90% dependability, about 0.21 for 99%)
a2 is the material factor (high-quality bearing steel can reach 1.5 to 2)
a3 is the operating problems aspect (good lubrication and cleanliness can offer 2 to 3)
With this estimation, designers can validate that the chosen bearing satisfies the needed service life. It additionally helps compare multiple options and make data-driven decisions.
This overview has actually walked you through the full option path– from examining working conditions, to matching the ideal bearing kind, to validating life expectancy. Recognizing and using this method will assist you make precise, effective, and cost-effective bearing choices throughout a wide variety of commercial applications.
