1. Product Fundamentals and Microstructural Qualities of Alumina Ceramics
1.1 Structure, Purity Qualities, and Crystallographic Properties

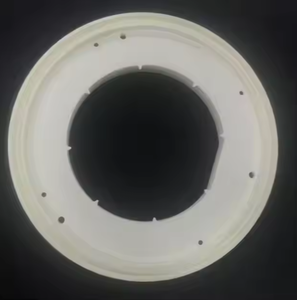

(Alumina Ceramic Wear Liners)
Alumina (Al Two O TWO), or light weight aluminum oxide, is just one of the most widely utilized technical ceramics in commercial design because of its superb equilibrium of mechanical strength, chemical stability, and cost-effectiveness.
When engineered into wear liners, alumina ceramics are normally made with pureness degrees ranging from 85% to 99.9%, with higher purity representing enhanced solidity, wear resistance, and thermal performance.
The dominant crystalline stage is alpha-alumina, which takes on a hexagonal close-packed (HCP) structure characterized by solid ionic and covalent bonding, contributing to its high melting factor (~ 2072 ° C )and reduced thermal conductivity.
Microstructurally, alumina porcelains consist of penalty, equiaxed grains whose size and distribution are controlled during sintering to optimize mechanical residential properties.
Grain dimensions typically vary from submicron to a number of micrometers, with better grains normally enhancing crack strength and resistance to crack propagation under rough loading.
Small additives such as magnesium oxide (MgO) are often presented in trace total up to inhibit uncommon grain development throughout high-temperature sintering, making certain consistent microstructure and dimensional stability.
The resulting material shows a Vickers firmness of 1500– 2000 HV, dramatically going beyond that of solidified steel (usually 600– 800 HV), making it extremely resistant to surface area deterioration in high-wear settings.
1.2 Mechanical and Thermal Performance in Industrial Conditions
Alumina ceramic wear liners are selected mainly for their superior resistance to rough, abrasive, and sliding wear systems widespread wholesale material handling systems.
They possess high compressive toughness (up to 3000 MPa), good flexural stamina (300– 500 MPa), and superb rigidity (Young’s modulus of ~ 380 Grade point average), enabling them to stand up to intense mechanical loading without plastic contortion.
Although inherently fragile contrasted to metals, their low coefficient of rubbing and high surface area solidity decrease bit bond and minimize wear prices by orders of size relative to steel or polymer-based alternatives.
Thermally, alumina preserves architectural stability approximately 1600 ° C in oxidizing environments, permitting usage in high-temperature processing environments such as kiln feed systems, central heating boiler ducting, and pyroprocessing tools.

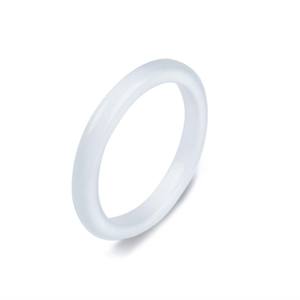

( Alumina Ceramic Wear Liners)
Its low thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) contributes to dimensional security during thermal biking, reducing the threat of splitting because of thermal shock when correctly mounted.
Furthermore, alumina is electrically protecting and chemically inert to a lot of acids, alkalis, and solvents, making it appropriate for destructive atmospheres where metallic linings would certainly break down quickly.
These mixed buildings make alumina porcelains excellent for protecting important infrastructure in mining, power generation, cement production, and chemical handling markets.
2. Production Processes and Design Combination Methods
2.1 Shaping, Sintering, and Quality Assurance Protocols
The production of alumina ceramic wear linings includes a series of accuracy manufacturing actions developed to accomplish high thickness, marginal porosity, and constant mechanical performance.
Raw alumina powders are processed with milling, granulation, and forming methods such as completely dry pushing, isostatic pushing, or extrusion, depending on the wanted geometry– floor tiles, plates, pipes, or custom-shaped sectors.
Environment-friendly bodies are then sintered at temperatures in between 1500 ° C and 1700 ° C in air, promoting densification with solid-state diffusion and accomplishing family member thickness exceeding 95%, frequently approaching 99% of academic thickness.
Complete densification is important, as recurring porosity works as anxiety concentrators and increases wear and fracture under solution problems.
Post-sintering procedures may include ruby grinding or washing to attain limited dimensional tolerances and smooth surface area coatings that minimize rubbing and particle capturing.
Each set undergoes extensive quality control, including X-ray diffraction (XRD) for phase analysis, scanning electron microscopy (SEM) for microstructural analysis, and hardness and bend testing to confirm conformity with international requirements such as ISO 6474 or ASTM B407.
2.2 Mounting Techniques and System Compatibility Considerations
Reliable assimilation of alumina wear liners right into industrial equipment calls for cautious interest to mechanical attachment and thermal expansion compatibility.
Usual installment techniques consist of glue bonding using high-strength ceramic epoxies, mechanical securing with studs or supports, and embedding within castable refractory matrices.
Adhesive bonding is widely used for flat or delicately rounded surface areas, offering consistent tension distribution and vibration damping, while stud-mounted systems allow for very easy substitute and are preferred in high-impact areas.
To accommodate differential thermal development between alumina and metal substratums (e.g., carbon steel), engineered voids, flexible adhesives, or compliant underlayers are integrated to prevent delamination or cracking throughout thermal transients.
Designers need to also take into consideration side defense, as ceramic floor tiles are prone to breaking at subjected corners; remedies include beveled edges, steel shrouds, or overlapping ceramic tile setups.
Proper installation guarantees long service life and optimizes the safety feature of the liner system.
3. Use Systems and Efficiency Assessment in Service Environments
3.1 Resistance to Abrasive, Erosive, and Influence Loading
Alumina ceramic wear linings excel in atmospheres controlled by 3 key wear systems: two-body abrasion, three-body abrasion, and particle disintegration.
In two-body abrasion, tough fragments or surface areas straight gouge the lining surface, a typical incident in chutes, hoppers, and conveyor transitions.
Three-body abrasion involves loose particles entraped in between the liner and moving material, bring about rolling and scraping action that slowly gets rid of product.
Abrasive wear happens when high-velocity fragments impinge on the surface area, specifically in pneumatic sharing lines and cyclone separators.
Because of its high firmness and low fracture durability, alumina is most effective in low-impact, high-abrasion situations.
It executes extremely well against siliceous ores, coal, fly ash, and cement clinker, where wear rates can be reduced by 10– 50 times compared to mild steel liners.
Nonetheless, in applications including repeated high-energy effect, such as key crusher chambers, hybrid systems incorporating alumina tiles with elastomeric supports or metal guards are usually utilized to take in shock and stop fracture.
3.2 Area Screening, Life Process Evaluation, and Failing Mode Analysis
Efficiency examination of alumina wear liners includes both lab testing and field tracking.
Standardized tests such as the ASTM G65 dry sand rubber wheel abrasion examination provide relative wear indices, while personalized slurry disintegration rigs replicate site-specific problems.
In commercial setups, use price is generally determined in mm/year or g/kWh, with service life estimates based on initial density and observed destruction.
Failure modes include surface sprucing up, micro-cracking, spalling at edges, and full floor tile dislodgement because of glue degradation or mechanical overload.
Root cause analysis commonly discloses installment mistakes, inappropriate quality choice, or unexpected influence lots as key contributors to early failure.
Life process expense analysis consistently demonstrates that regardless of higher preliminary prices, alumina linings provide remarkable total price of possession due to prolonged replacement intervals, reduced downtime, and reduced maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Applications Throughout Heavy Industries
Alumina ceramic wear linings are released throughout a wide range of industrial industries where material destruction postures functional and financial difficulties.
In mining and mineral handling, they safeguard transfer chutes, mill liners, hydrocyclones, and slurry pumps from unpleasant slurries having quartz, hematite, and various other tough minerals.
In power plants, alumina tiles line coal pulverizer ducts, central heating boiler ash hoppers, and electrostatic precipitator elements revealed to fly ash disintegration.
Cement producers use alumina linings in raw mills, kiln inlet zones, and clinker conveyors to fight the extremely unpleasant nature of cementitious materials.
The steel industry utilizes them in blast furnace feed systems and ladle shadows, where resistance to both abrasion and moderate thermal lots is necessary.
Even in less traditional applications such as waste-to-energy plants and biomass handling systems, alumina ceramics give sturdy protection against chemically aggressive and fibrous materials.
4.2 Arising Fads: Composite Equipments, Smart Liners, and Sustainability
Present research study focuses on enhancing the sturdiness and capability of alumina wear systems via composite style.
Alumina-zirconia (Al Two O THREE-ZrO ₂) compounds utilize improvement strengthening from zirconia to boost fracture resistance, while alumina-titanium carbide (Al ₂ O FIVE-TiC) qualities use improved efficiency in high-temperature moving wear.
One more technology includes installing sensing units within or beneath ceramic linings to check wear progression, temperature level, and effect regularity– allowing anticipating upkeep and digital double combination.
From a sustainability point of view, the extended life span of alumina liners reduces material intake and waste generation, straightening with circular economic climate concepts in commercial procedures.
Recycling of spent ceramic liners into refractory aggregates or construction products is also being explored to reduce ecological footprint.
To conclude, alumina ceramic wear linings stand for a foundation of contemporary commercial wear protection modern technology.
Their outstanding solidity, thermal stability, and chemical inertness, combined with fully grown production and installment techniques, make them essential in combating material degradation across hefty sectors.
As material scientific research advancements and electronic monitoring becomes extra integrated, the future generation of wise, durable alumina-based systems will certainly better improve functional efficiency and sustainability in rough environments.
