1. Basic Structure and Product Make-up
1.1 The Nanoscale Style of Aerogels

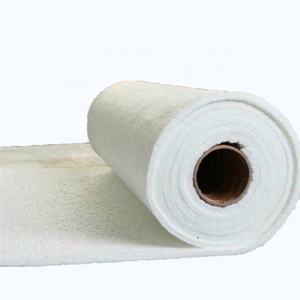

(Aerogel Blanket)
Aerogel blankets are advanced thermal insulation materials built on a special nanostructured structure, where a solid silica or polymer network extends an ultra-high porosity volume– typically exceeding 90% air.
This structure originates from the sol-gel process, in which a liquid forerunner (typically tetramethyl orthosilicate or TMOS) undertakes hydrolysis and polycondensation to develop a wet gel, followed by supercritical or ambient pressure drying to remove the fluid without breaking down the delicate permeable network.
The resulting aerogel consists of interconnected nanoparticles (3– 5 nm in diameter) developing pores on the scale of 10– 50 nm, tiny enough to suppress air particle motion and thus reduce conductive and convective heat transfer.
This phenomenon, called Knudsen diffusion, drastically minimizes the efficient thermal conductivity of the product, commonly to worths in between 0.012 and 0.018 W/(m · K) at space temperature– among the lowest of any strong insulator.
Regardless of their low thickness (as low as 0.003 g/cm ³), pure aerogels are inherently breakable, requiring reinforcement for functional use in versatile covering kind.
1.2 Reinforcement and Compound Layout
To get over delicacy, aerogel powders or pillars are mechanically integrated into fibrous substrates such as glass fiber, polyester, or aramid felts, creating a composite “blanket” that preserves exceptional insulation while obtaining mechanical toughness.
The strengthening matrix gives tensile toughness, versatility, and dealing with resilience, enabling the material to be cut, curved, and set up in intricate geometries without considerable efficiency loss.
Fiber web content generally ranges from 5% to 20% by weight, thoroughly balanced to minimize thermal connecting– where fibers conduct warmth across the covering– while making sure architectural stability.
Some advanced layouts include hydrophobic surface treatments (e.g., trimethylsilyl groups) to stop dampness absorption, which can deteriorate insulation efficiency and promote microbial growth.
These adjustments allow aerogel blankets to keep steady thermal homes even in humid environments, broadening their applicability past regulated laboratory conditions.
2. Production Processes and Scalability
( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Production
The production of aerogel blankets begins with the formation of a damp gel within a fibrous mat, either by impregnating the substrate with a fluid forerunner or by co-forming the gel and fiber network all at once.
After gelation, the solvent have to be eliminated under conditions that prevent capillary stress from breaking down the nanopores; traditionally, this required supercritical CO two drying out, a pricey and energy-intensive procedure.
Recent advancements have actually enabled ambient pressure drying out via surface area adjustment and solvent exchange, substantially decreasing manufacturing prices and enabling continual roll-to-roll manufacturing.
In this scalable process, lengthy rolls of fiber floor covering are continuously coated with precursor service, gelled, dried, and surface-treated, allowing high-volume result suitable for commercial applications.
This shift has been essential in transitioning aerogel coverings from specific niche research laboratory products to readily feasible items utilized in building and construction, power, and transportation sectors.
2.2 Quality Control and Performance Uniformity
Ensuring uniform pore structure, regular thickness, and trusted thermal efficiency across huge manufacturing batches is crucial for real-world release.
Suppliers use strenuous quality assurance procedures, including laser scanning for thickness variant, infrared thermography for thermal mapping, and gravimetric evaluation for wetness resistance.
Batch-to-batch reproducibility is vital, especially in aerospace and oil & gas industries, where failure due to insulation malfunction can have severe consequences.
Furthermore, standardized testing according to ASTM C177 (warmth circulation meter) or ISO 9288 ensures precise reporting of thermal conductivity and allows fair contrast with standard insulators like mineral woollen or foam.
3. Thermal and Multifunctional Properties
3.1 Superior Insulation Across Temperature Level Varies
Aerogel coverings exhibit superior thermal performance not just at ambient temperatures however likewise throughout extreme varieties– from cryogenic problems below -100 ° C to high temperatures going beyond 600 ° C, depending on the base material and fiber type.
At cryogenic temperature levels, standard foams might crack or lose effectiveness, whereas aerogel coverings remain flexible and keep reduced thermal conductivity, making them suitable for LNG pipelines and storage tanks.
In high-temperature applications, such as commercial heaters or exhaust systems, they give effective insulation with decreased density compared to bulkier choices, saving space and weight.
Their reduced emissivity and capacity to mirror radiant heat better boost efficiency in glowing barrier arrangements.
This wide operational envelope makes aerogel blankets distinctively flexible amongst thermal monitoring options.
3.2 Acoustic and Fire-Resistant Features
Beyond thermal insulation, aerogel coverings show noteworthy sound-dampening buildings because of their open, tortuous pore framework that dissipates acoustic energy via thick losses.
They are increasingly utilized in automobile and aerospace cabins to minimize sound pollution without adding significant mass.
In addition, most silica-based aerogel coverings are non-combustible, achieving Course A fire rankings, and do not launch harmful fumes when revealed to fire– critical for building security and public facilities.
Their smoke thickness is exceptionally reduced, enhancing exposure during emergency emptyings.
4. Applications in Market and Arising Technologies
4.1 Energy Effectiveness in Building and Industrial Solution
Aerogel coverings are changing power efficiency in style and industrial design by enabling thinner, higher-performance insulation layers.
In buildings, they are made use of in retrofitting historical frameworks where wall density can not be boosted, or in high-performance façades and windows to minimize thermal linking.
In oil and gas, they shield pipes lugging warm liquids or cryogenic LNG, reducing power loss and protecting against condensation or ice development.
Their lightweight nature also reduces structural lots, particularly helpful in offshore platforms and mobile systems.
4.2 Aerospace, Automotive, and Customer Applications
In aerospace, aerogel coverings safeguard spacecraft from extreme temperature changes throughout re-entry and shield sensitive instruments from thermal cycling in space.
NASA has actually used them in Mars wanderers and astronaut suits for easy thermal law.
Automotive manufacturers incorporate aerogel insulation into electric automobile battery loads to prevent thermal runaway and enhance safety and security and performance.
Consumer items, consisting of outdoor apparel, footwear, and camping equipment, currently feature aerogel linings for exceptional heat without mass.
As manufacturing expenses decline and sustainability boosts, aerogel blankets are poised to come to be conventional options in worldwide initiatives to minimize power usage and carbon exhausts.
To conclude, aerogel coverings represent a convergence of nanotechnology and functional design, delivering unequaled thermal efficiency in an adaptable, long lasting layout.
Their capability to conserve energy, area, and weight while keeping safety and security and ecological compatibility placements them as vital enablers of lasting modern technology throughout varied markets.
