1. Material Scientific Research and Structural Stability
1.1 Crystal Chemistry and Bonding Characteristics
(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms set up in a tetrahedral lattice, primarily in hexagonal (4H, 6H) or cubic (3C) polytypes, each showing phenomenal atomic bond strength.
The Si– C bond, with a bond energy of approximately 318 kJ/mol, is amongst the greatest in architectural porcelains, giving exceptional thermal security, firmness, and resistance to chemical attack.
This durable covalent network leads to a product with a melting factor surpassing 2700 Ā° C(sublimes), making it one of one of the most refractory non-oxide porcelains offered for high-temperature applications.
Unlike oxide ceramics such as alumina, SiC maintains mechanical stamina and creep resistance at temperatures over 1400 Ā° C, where numerous metals and conventional ceramics begin to soften or weaken.
Its reduced coefficient of thermal development (~ 4.0 Ć 10 ā»ā¶/ K) integrated with high thermal conductivity (80– 120 W/(m Ā· K)) allows fast thermal cycling without devastating splitting, a crucial feature for crucible performance.
These innate residential or commercial properties stem from the balanced electronegativity and comparable atomic dimensions of silicon and carbon, which advertise a very steady and densely packed crystal framework.
1.2 Microstructure and Mechanical Durability

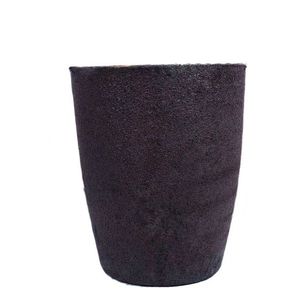

Silicon carbide crucibles are commonly made from sintered or reaction-bonded SiC powders, with microstructure playing a definitive function in sturdiness and thermal shock resistance.
Sintered SiC crucibles are created with solid-state or liquid-phase sintering at temperatures over 2000 Ā° C, commonly with boron or carbon additives to enhance densification and grain boundary communication.
This process generates a fully thick, fine-grained structure with marginal porosity (
