Introduction to Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic product that has gotten prevalent acknowledgment for its outstanding thermal conductivity, electrical insulation, and mechanical security at elevated temperatures. With a hexagonal wurtzite crystal framework, AlN displays an one-of-a-kind combination of properties that make it the most suitable substrate material for applications in electronics, optoelectronics, power components, and high-temperature atmospheres. Its capability to effectively dissipate heat while preserving exceptional dielectric stamina placements AlN as a superior alternative to typical ceramic substratums such as alumina and beryllium oxide. This short article explores the basic characteristics of aluminum nitride porcelains, delves into fabrication techniques, and highlights its essential functions throughout sophisticated technical domain names.

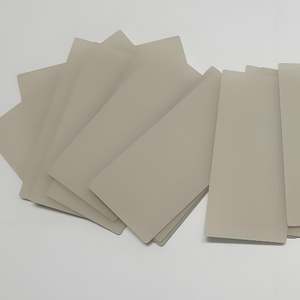

(Aluminum Nitride Ceramics)
Crystal Structure and Fundamental Properties
The performance of light weight aluminum nitride as a substratum material is mainly dictated by its crystalline structure and intrinsic physical properties. AlN embraces a wurtzite-type lattice made up of alternating aluminum and nitrogen atoms, which adds to its high thermal conductivity– typically surpassing 180 W/(m · K), with some high-purity samples attaining over 320 W/(m · K). This worth dramatically surpasses those of other commonly utilized ceramic materials, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal performance, AlN has a wide bandgap of about 6.2 eV, leading to outstanding electric insulation properties even at heats. It likewise demonstrates low thermal expansion (CTE ≈ 4.5 × 10 ⁻⁶/ K), which closely matches that of silicon and gallium arsenide, making it an optimum match for semiconductor tool packaging. In addition, AlN shows high chemical inertness and resistance to thaw metals, improving its suitability for extreme atmospheres. These consolidated attributes establish AlN as a top candidate for high-power digital substrates and thermally took care of systems.
Manufacture and Sintering Technologies
Making high-quality aluminum nitride ceramics requires specific powder synthesis and sintering strategies to accomplish dense microstructures with marginal pollutants. Due to its covalent bonding nature, AlN does not easily densify with standard pressureless sintering. As a result, sintering aids such as yttrium oxide (Y ₂ O SIX), calcium oxide (CaO), or unusual earth elements are usually included in promote liquid-phase sintering and improve grain border diffusion.
The manufacture process normally starts with the carbothermal decrease of aluminum oxide in a nitrogen atmosphere to synthesize AlN powders. These powders are then crushed, formed via approaches like tape spreading or injection molding, and sintered at temperature levels between 1700 ° C and 1900 ° C under a nitrogen-rich atmosphere. Hot pushing or spark plasma sintering (SPS) can further improve density and thermal conductivity by lowering porosity and promoting grain placement. Advanced additive manufacturing methods are likewise being checked out to fabricate complex-shaped AlN parts with customized thermal monitoring capabilities.
Application in Electronic Packaging and Power Modules
One of one of the most prominent uses of light weight aluminum nitride ceramics is in electronic product packaging, specifically for high-power tools such as protected gateway bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power densities enhance in contemporary electronic devices, effective warmth dissipation becomes vital to make certain dependability and longevity. AlN substrates supply an ideal service by combining high thermal conductivity with superb electrical isolation, stopping short circuits and thermal runaway problems.
In addition, AlN-based straight adhered copper (DBC) and active steel brazed (AMB) substrates are significantly utilized in power component designs for electrical automobiles, renewable resource inverters, and industrial motor drives. Contrasted to typical alumina or silicon nitride substratums, AlN uses quicker heat transfer and much better compatibility with silicon chip coefficients of thermal development, therefore lowering mechanical anxiety and improving overall system performance. Continuous study intends to enhance the bonding toughness and metallization strategies on AlN surfaces to more broaden its application range.
Use in Optoelectronic and High-Temperature Devices
Past electronic product packaging, aluminum nitride ceramics play an important function in optoelectronic and high-temperature applications due to their openness to ultraviolet (UV) radiation and thermal stability. AlN is commonly used as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, especially in applications needing sanitation, picking up, and optical interaction. Its large bandgap and reduced absorption coefficient in the UV array make it an ideal candidate for supporting light weight aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s capability to function dependably at temperature levels exceeding 1000 ° C makes it suitable for use in sensing units, thermoelectric generators, and components revealed to severe thermal lots. In aerospace and protection fields, AlN-based sensing unit packages are employed in jet engine monitoring systems and high-temperature control units where conventional materials would certainly fall short. Continual improvements in thin-film deposition and epitaxial development methods are expanding the potential of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Environmental Stability and Long-Term Reliability
A crucial consideration for any type of substrate material is its long-lasting reliability under functional stresses. Light weight aluminum nitride shows superior ecological stability compared to several other porcelains. It is highly immune to corrosion from acids, antacid, and molten steels, ensuring resilience in hostile chemical environments. However, AlN is prone to hydrolysis when revealed to dampness at elevated temperature levels, which can degrade its surface area and reduce thermal performance.
To reduce this concern, protective coverings such as silicon nitride (Si six N ₄), light weight aluminum oxide, or polymer-based encapsulation layers are often put on enhance moisture resistance. Additionally, cautious securing and packaging strategies are implemented during device assembly to preserve the stability of AlN substratums throughout their life span. As environmental policies become a lot more stringent, the non-toxic nature of AlN additionally places it as a preferred option to beryllium oxide, which positions health dangers throughout processing and disposal.
Conclusion
Aluminum nitride porcelains stand for a course of innovative materials uniquely matched to address the growing demands for effective thermal management and electrical insulation in high-performance electronic and optoelectronic systems. Their phenomenal thermal conductivity, chemical stability, and compatibility with semiconductor technologies make them one of the most excellent substratum product for a vast array of applications– from auto power modules to deep UV LEDs and high-temperature sensors. As fabrication modern technologies continue to advance and affordable production approaches mature, the fostering of AlN substrates is anticipated to climb considerably, driving development in next-generation electronic and photonic devices.
